The Wren 13x23 Tiny House Plan with Sleeping Loft
Plan SPS-CP-1323-01
Preview images are made from this plan's own drawings: low resolution, watermarked. They are line drawings, not photos or renderings.
About this plan
The Wren is a 13'-0" x 23'-0" tiny house with a sleeping loft. It has 367 sq ft heated: 299 sq ft on the first floor plus 68 sq ft of loft with 5'-0" or more headroom. A 13'-0" x 5'-0" covered porch sits on the gable end.
The living room and kitchen sit under a vaulted ceiling below a 12/12 gable roof. A bedroom and a bath with a shower are at the back under a 7'-0" ceiling. The sleeping loft is above, reached by a ladder.
This is a concept / pre-design plan set. Slab and crawlspace foundations are both drawn; pick one for your build. A licensed architect or engineer where you build must review, adapt and stamp the plans before permit or construction.
What's included with this plan
What's included3 sheets. Digital PDF.
- Cover sheet
- General notes and items to confirm locally
- Floor plan
- Loft plan
- Slab and crawlspace foundation plans

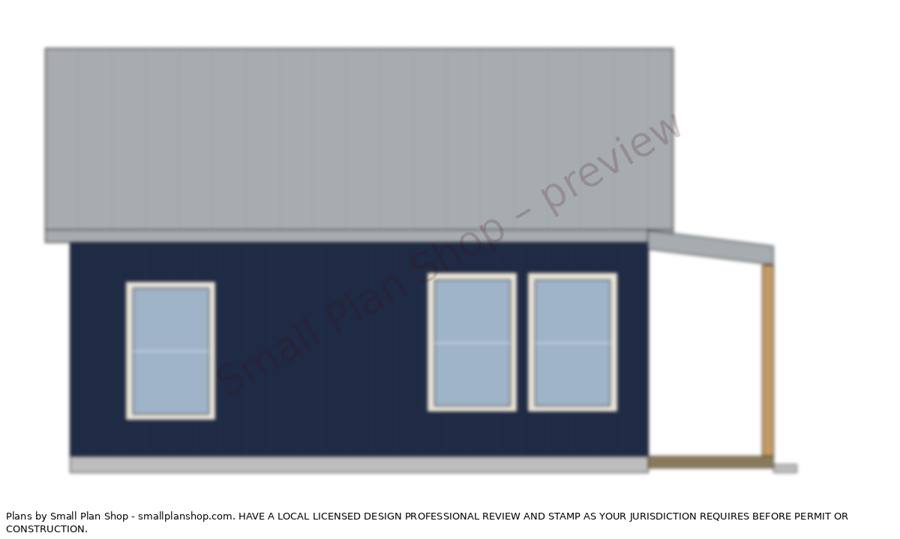

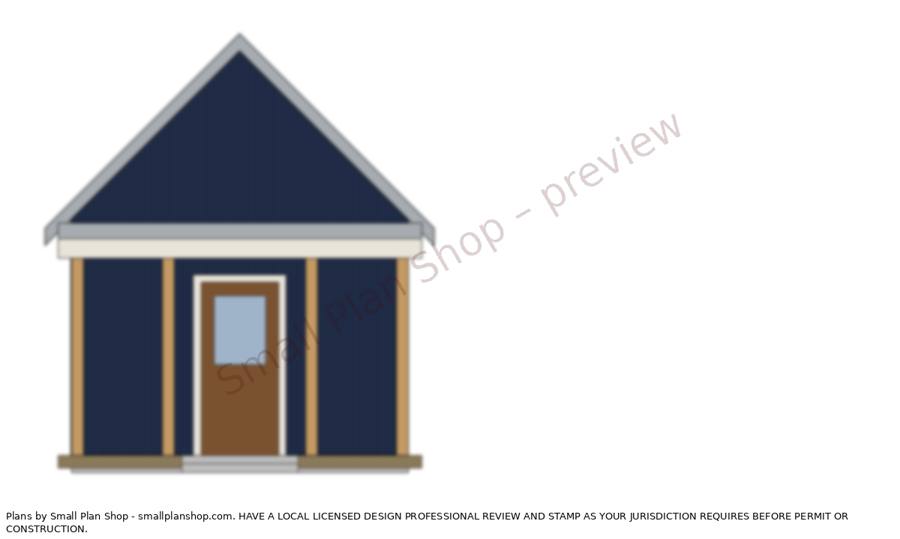

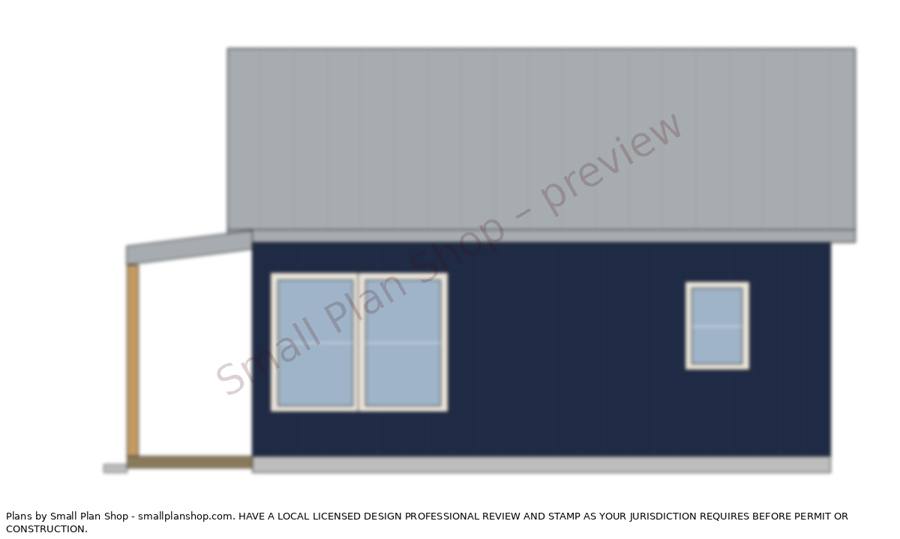

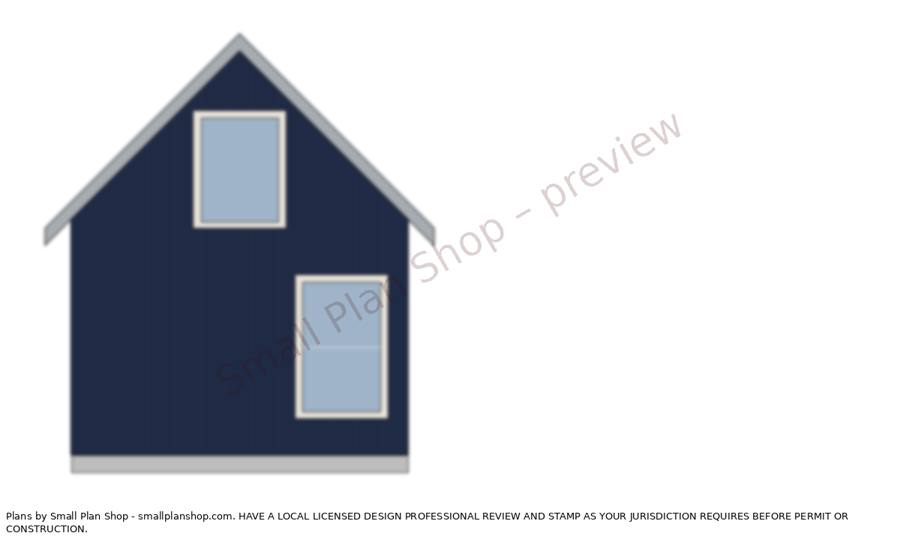

- Exterior elevations
No material list is included with this plan. Get quotes from your builder or supplier against your final, locally reviewed plans.
Not included
- Stamp or seal of any kind
- Site plan
- Structural calculations
- Electrical plan
- Material list
- Roof framing plan
- Changes for your local code
- CAD files
Who drew this plan
Drawn by Small Plan Shop and checked against our review checklist. Items to confirm with your local builder or engineer are listed on the general notes sheet.
Before you permit or build
Concept / pre-design plan. Not for construction. A licensed architect or engineer in your area must review, adapt and stamp before permit or construction.
Concept / pre-design plans. Drawn with reference to the 2021 IRC as a general guide only. They carry no professional seal and are not designed for your specific site. Codes vary by location. A licensed architect or engineer where you'll build must review, adapt and stamp the plans, and confirm local codes, before permitting or construction. The buyer is responsible for permits, site work and foundation design. Small Plan Shop is not responsible for construction without that review. Full disclaimer.
License and refunds
One build, one site, not transferable. See the full license.
Refunds: Digital plans are final sale. If a file is broken or a listed sheet is missing, we fix it or refund you.
Questions about this plan
- Is the loft a bedroom?
- The loft is drawn as a sleeping loft reached by a ladder. Whether a ladder-access loft is allowed for sleeping depends on your local code, including escape-window rules. Confirm with your building official.
- Does the plan carry a stamp or seal?
- No. It is a concept / pre-design plan set with no stamp or seal. A licensed architect or engineer where you build must review, adapt and stamp it before you apply for a permit or build.
- Which foundation does it use?
- A slab plan and a crawlspace plan are both drawn. Pick one for your build; you do not need both.
- Is a material list included?
- No. This set has the sheets listed above and no material list.
- Do I get CAD files?
- No. The download is PDF sheets only.
- Can I change the plan for my build?
- Yes. The license lets you modify the plans for your one build. See the license page for the full terms.
